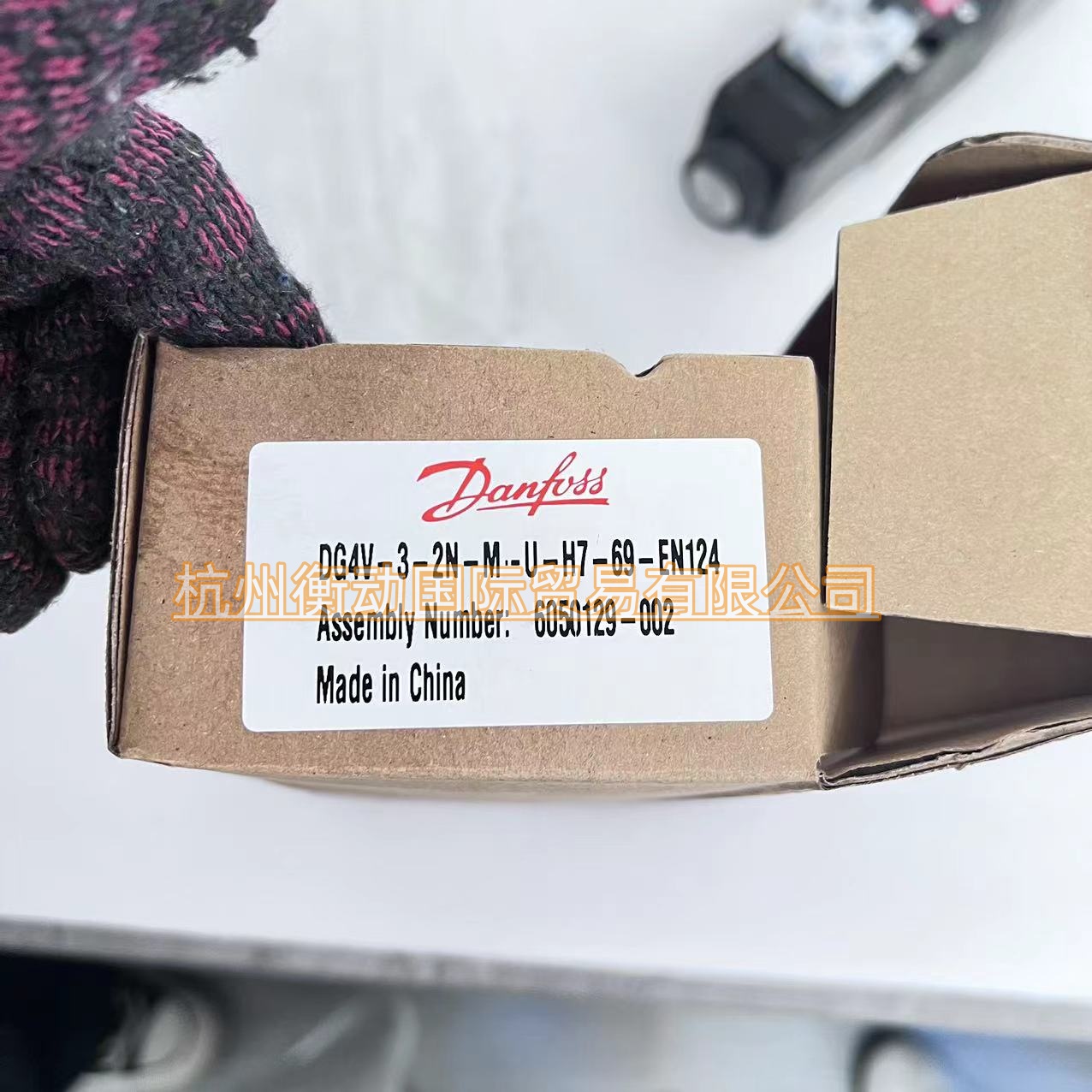

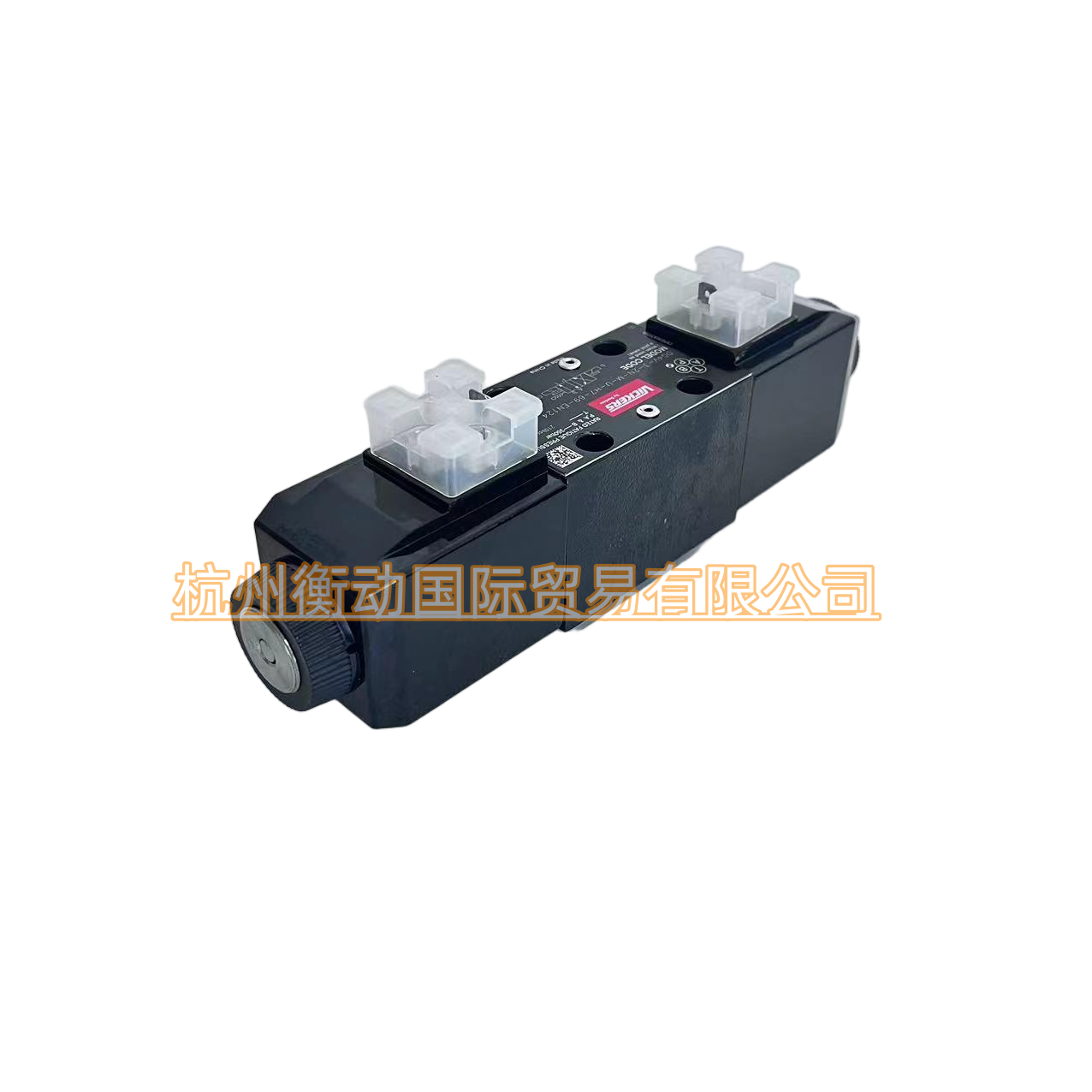

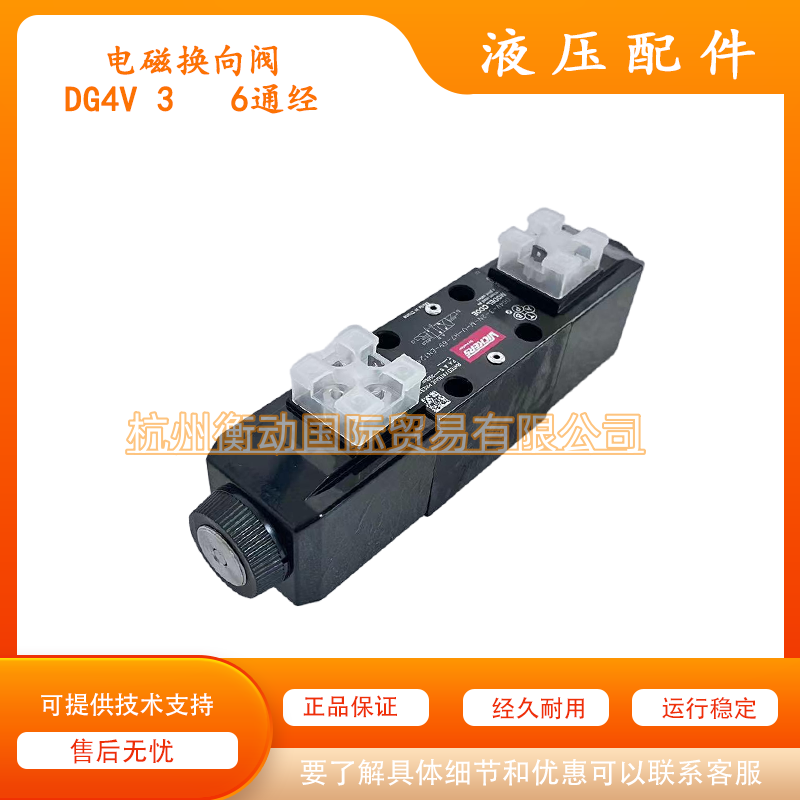

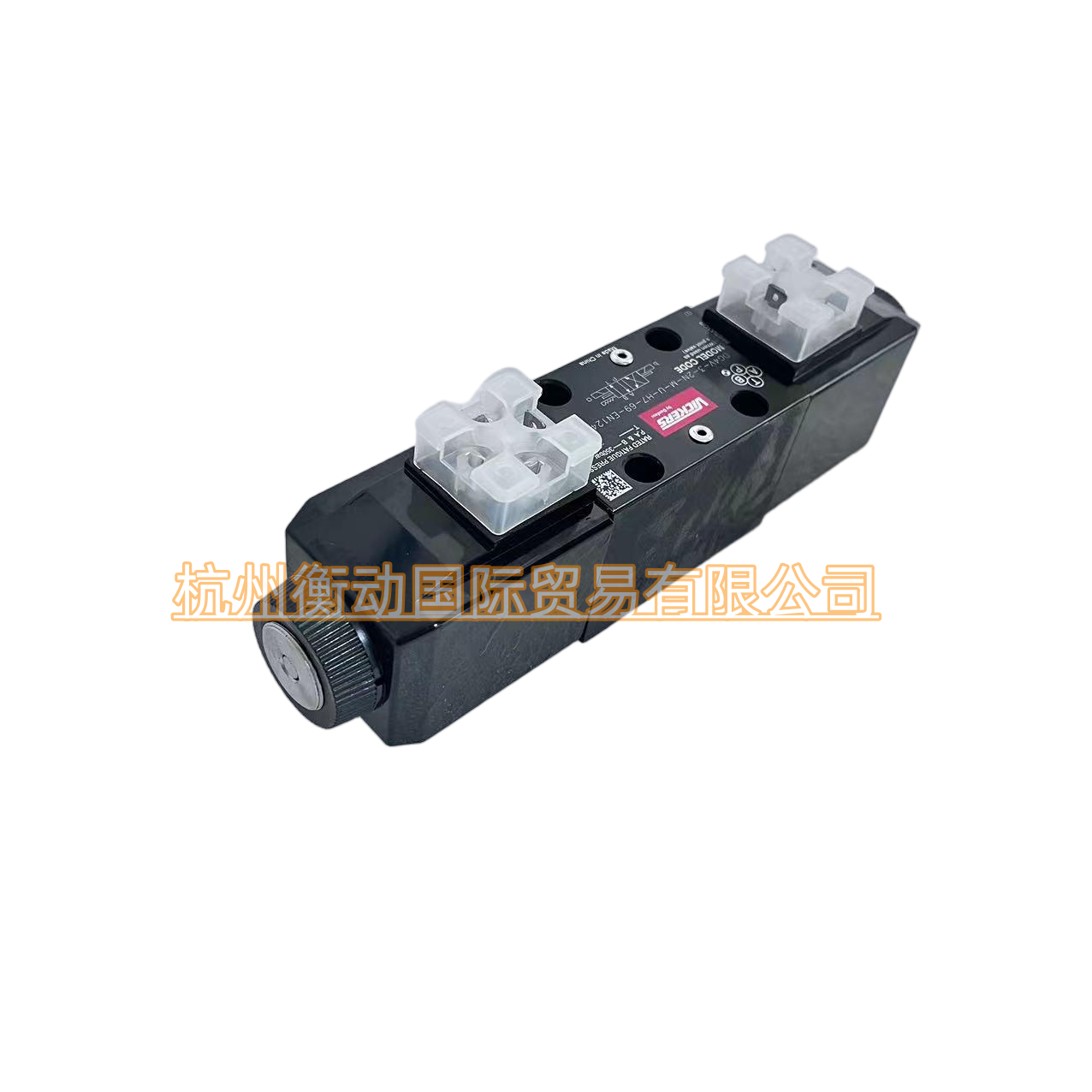

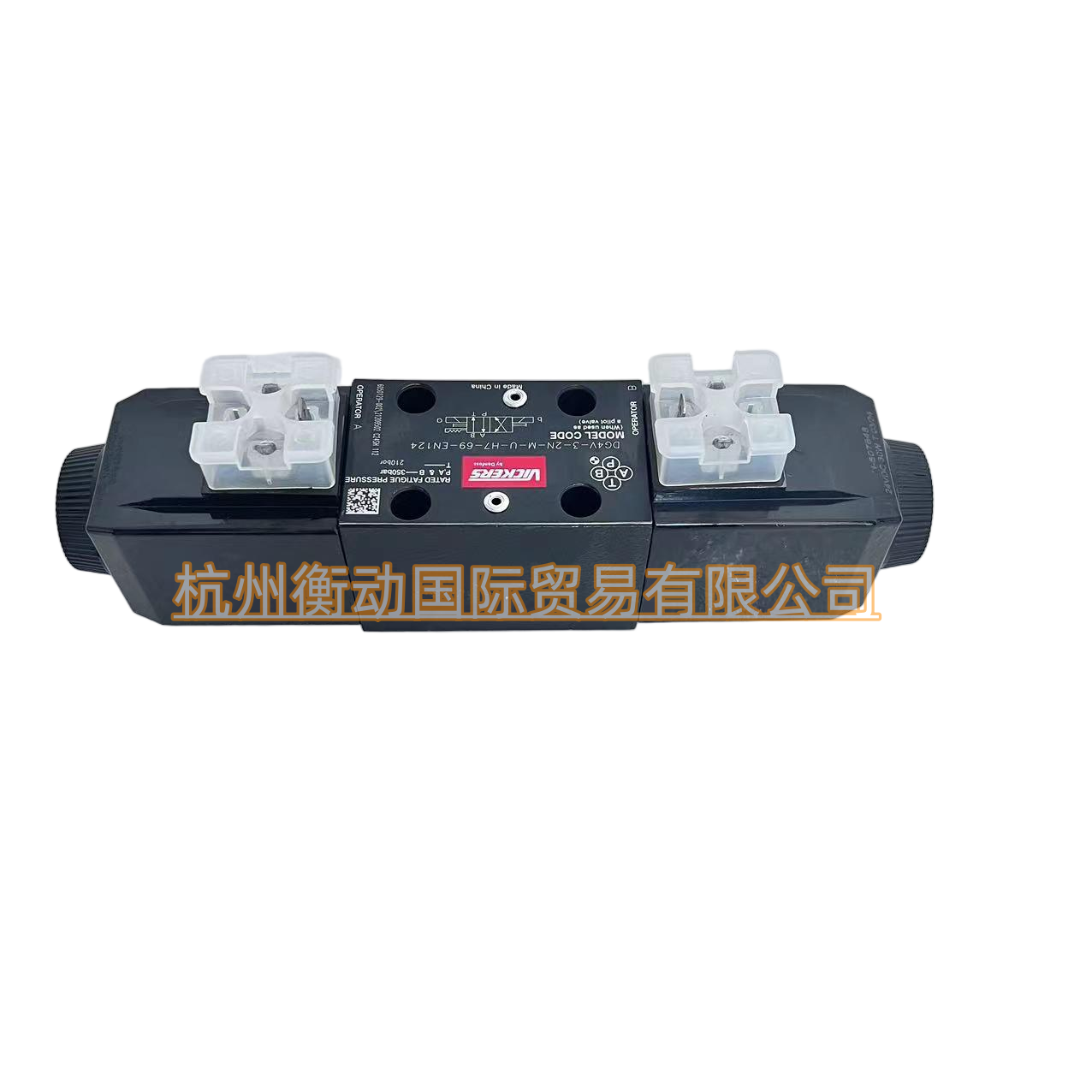

Vickers Danfoss DG4V - 3 - 2N - M - U - H7 - 69 - EN124 Solenoid Valve, Directional Control Valve wi

1. Product Overview

This is a product produced byVickers (now part of Danfoss Power Solutions)It is aWet solenoid directional control valve. This valve belongs to theDG4V - 3 seriesand is aNG6 (CETOP 3 / 6 port size)standard solenoid directional valve, mainly used to control theon - off and flow directionof the hydraulic oil circuit, thereby driving actuators such as cylinders or hydraulic motors to switch the movement direction.

2. Core Features

• High switching reliability: Adopting thewet solenoiddesign, there is no seal between the solenoid push rod and the valve core. The frictional resistance is small, and there is no problem of O - ring wear, thus ensuring extremely highaction reliabilityandlong service life.




• Low noise and low impact: The optimized valve core design results in small pressure shock andlow noiseduring the commutation process, which is beneficial for improving the working environment and protecting system components.




• High power density: In the small size ofNG6 (6 port size), it can provide a relatively high flow rate (usually about 30 - 40 L/min), achieving a good combination ofsmall volume and large flow.




• Multiple neutral functions: The "2N" in the model represents its neutral function (such as "O - type", "Y - type", "P - type", etc.). Users can select different spool functions according to system requirements (such as locking, unloading, floating).




3. Typical Applications

• Machine tool industry: Used for the direction control of actions such as hydraulic fixtures, tool magazines, and headstocks of various CNC machine tools and machining centers.




• Plastic machinery: Used for the control of actions such as mold opening and closing and ejector pins of injection molding machines, blow - molding machines and other equipment.




• Die - casting machines: Used in systems such as injection and mold opening and closing.




• General industry: Widely used in various automated equipment and production lines that require precise direction control.
