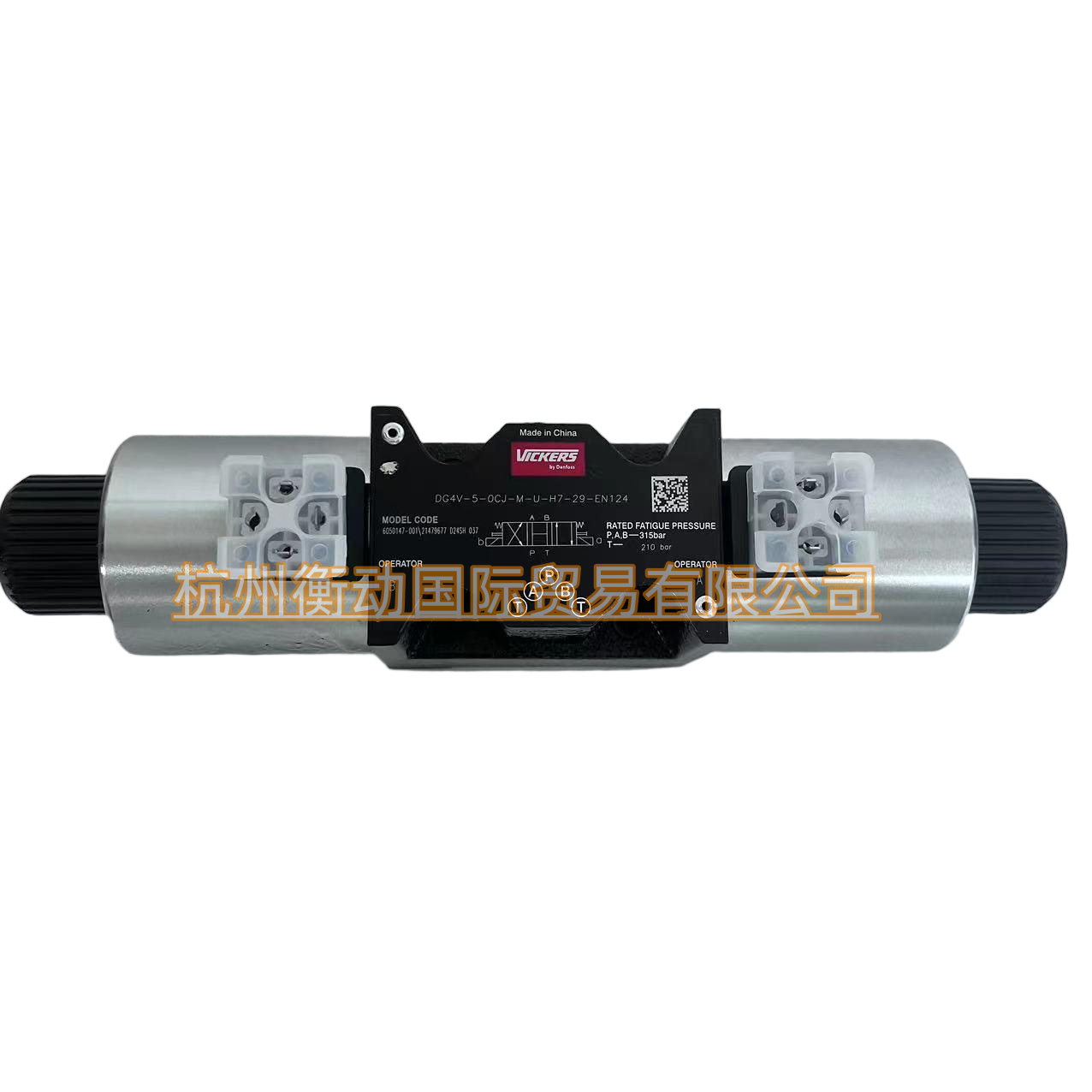

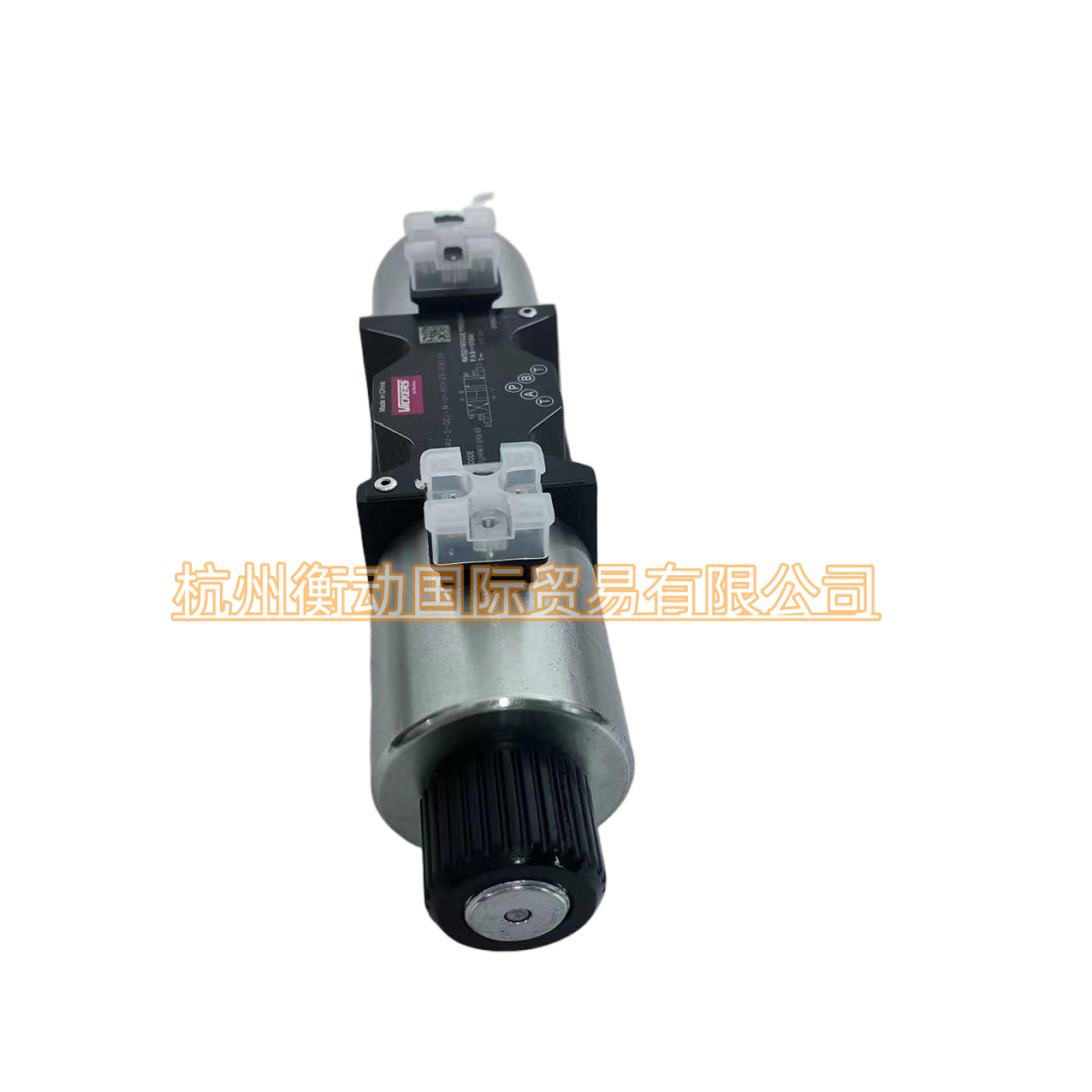

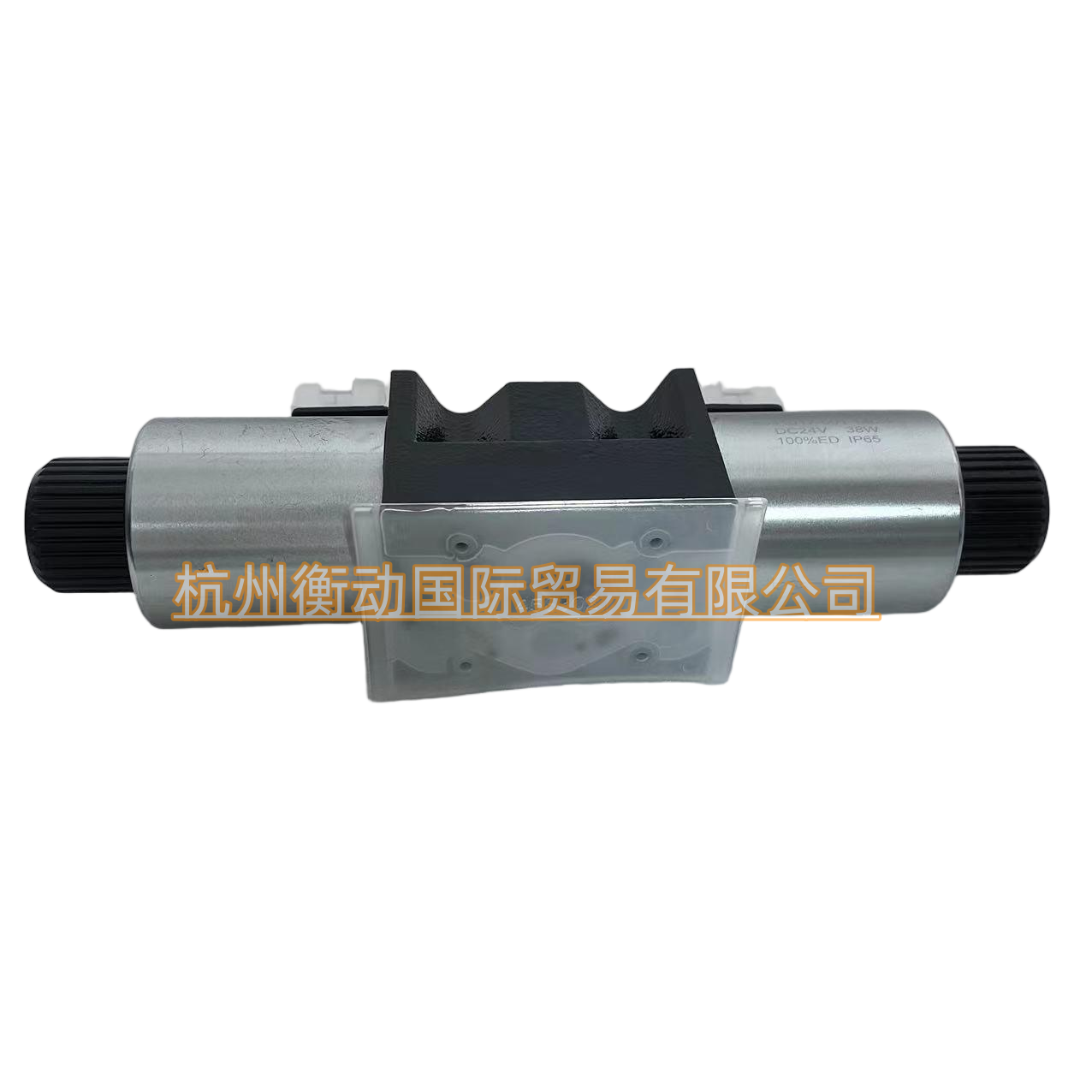

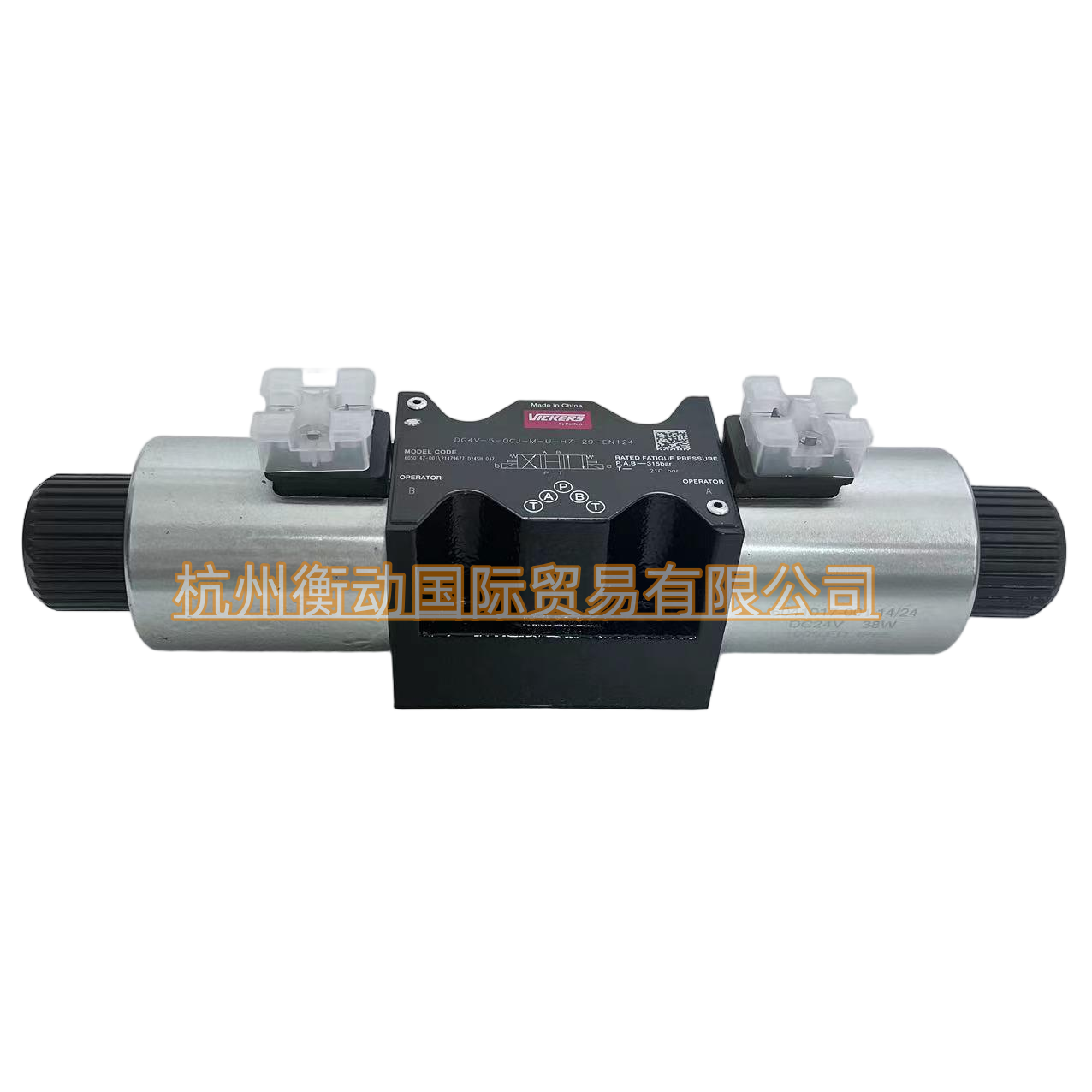

Vickers Danfoss DG4V - 5 - 0CJ - M - U - H7 - 29 - EN124 Solenoid Valve Directional Valve with 10mm

1. Product Overview

This is a product made byVickers (now part of Danfoss Power Systems)ProductionIndustrial electromagnetic directional valveThis valve belongs toDG4V-5 seriesIt is aWet electromagnets, spring-aligned typeof3-position, 4-way slide valveIt is mainly used to control the oil in hydraulic systems.Flow direction and on/offIt is with itsHigh switching reliability, long lifespan and compact structureIt is renowned as a commonly used component in industrial hydraulic systems.

2. Core Features

• High reliability and long lifespan:usewet electromagnetThe armature is designed to operate in oil, which effectively improves cooling and lubrication conditions, significantly reduces wear, and extends service life.




• Multiple median functionsIt offers a variety of valve core types (such as 0CJ, etc.) and allows you to select the appropriate oil port connection method according to different system requirements, adapting to various control logics.




• Compact structureThe valve body has a compact design, which facilitates integration into valve blocks or compact hydraulic systems, saving installation space.




• Easy to installAdopting the standardSubplate mountingThis method facilitates installation and replacement on valve blocks or integrated blocks, simplifying the design and maintenance of hydraulic systems.




3. Typical Applications

• machine toolHydraulic systems used in various machine tools (such as lathes, milling machines, and grinding machines) to control the movement of the worktable and the clamping and releasing of fixtures.




• Pressure machineryUsed for controlling the opening, closing, balancing, and ejection actions of molds in equipment such as bending machines and press machines.




• Plastics MachineryUsed for auxiliary motion control of small injection molding machines or blow molding machines.




• Metallurgical equipmentHydraulic auxiliary systems used in equipment such as continuous casting machines and rolling mills.




• General industrial equipmentIt is widely used in various automated production lines, testing equipment and special mechanical equipment that require direction control.
